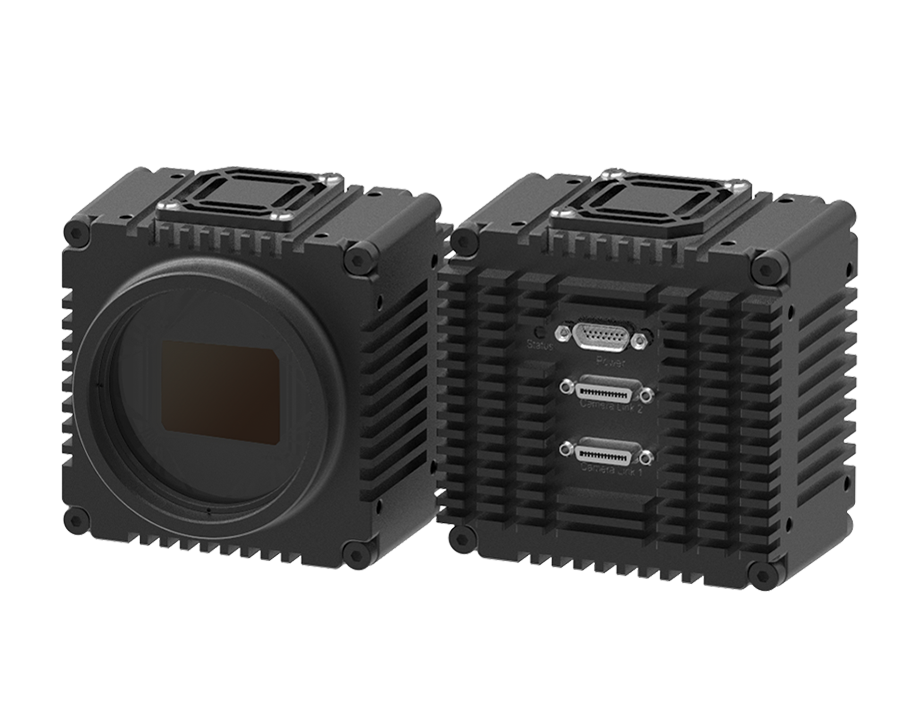

65MP High Resolution Camera

SR-6500-M-G-CL

Global shutter CMOS sensor
3.2um x 3.2um pixel
9344 x 7000@7fps
Read noise <2e-

Overview

-40°~ 55°℃ operating temperature

Small size, flexible assembly

CL Medium / Full data interface

RS 422 / Camera Link serial communication

Domestic efficient technical support

Specifications
Basic parameters Product model SR-6500-M-G-CL
Sensor type Global shutter CMOS
Resolution & frame rate 9344x7000@7fps, 4096x3072@25fps
Color Monochrome
Effective area 2.3'(29.9mm x 22.4mm)
Pixel size 3.2μm x 3.2μm
Quantum efficiency > 65% @500nm
Dynamic range > 60dB
Full well capacity > 10ke-
SNR > 40dB
Feature settings Depth 12bit / 8bit
Exposure time 5us ~ 1/Frame Rate
External trigger Free Run, External Trigger
Image Processing Auto exposure, Auto enhancement, Flat field correction, 2D noise reduction, DPC, ROI, Binning
Interface settings Optical interface M42 X 0.75 / F mount
Data interface Camera Link Medium / Full
Communication interface RS 422 / CameraLink
Input voltage 5VDC ~ 12VDC
Other information Power < 8W
Size 45mm x 48mm x 45mm
Weight <100g
Operating temperature -40℃ ~ 55℃
Storage temperature -55℃~70℃
Dimensions
