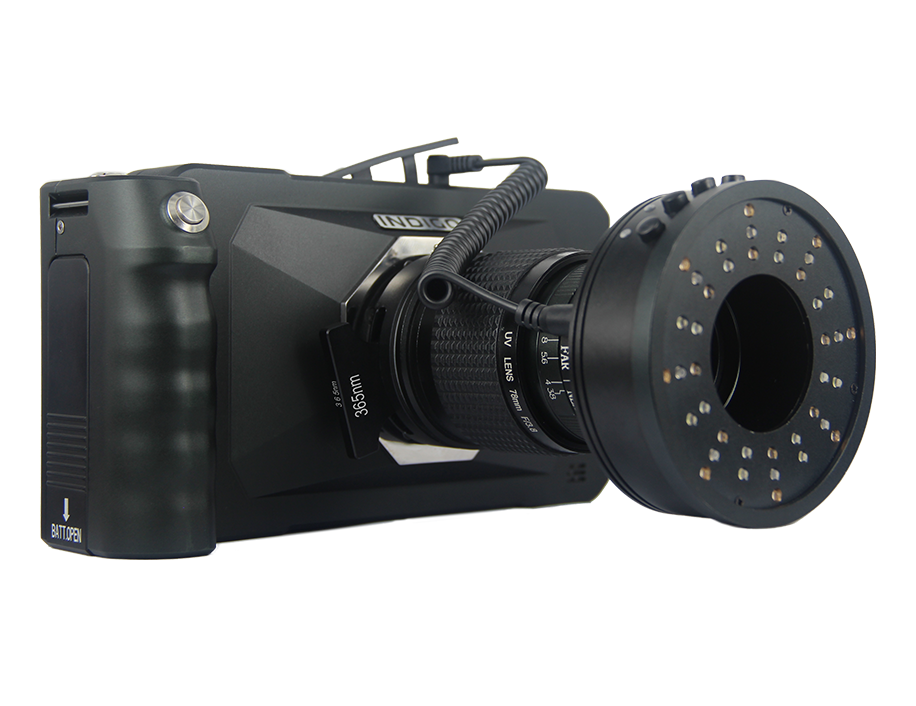

Portable UV-VIS-NIR imaging and Processing System
IDG-MS-P
Back - light thinning sCMOS chip technology
180-1100nm high sensitivity, low noise, ultra-wide spectral response
@ 254 nm, 60% and 55% @ 365 nm
Uv - enhanced, 3-5 m long - distance search function
1.3e- ultra-low readout noise
93dB ultra high dynamic rang
Overview
1. OSD menu real-time touch screen operation, photo taking, video recording and image processing functions are integrated, which can realize single and 4 continuous photo taking 29fps video recording
2. The built-in intelligent anti-shake algorithm can automatically match the best shutter time, make the image clear and effectively solve the fuzzy problem caused by handshaking
3. Have electronic scale to measure the size of the shooting target in real time
Specifications
| Basic parameters | Product model | IDG-MS-P |
| Sensor type | CMOS | |
| Pixel size | 11μmx11μm | |
| Effective optical dimension | 2 inches, 4 megapixels | |
| color | Monochromatic | |
| Spectral range | 180-1100nm；60%254nm；55%@365nm | |
| The noise reduction | High conversion gain electronic noise reduction technology; Combine FPGA with ISP high performance 2D/3D noise reduction | |
| Feature Settings | Image stabilization | Anti-shake photo mode, automatically search for the sharpest photos and save them |
| ISP processing | Saturation, brightness, contrast, Gamma adjustment, automatic color levels, automatic gain, 2D/3D noise reduction | |
| display | 7-inch touch hd 1280 x 800 IPS display | |
| OSD touch control menu | Main interface: power display/photo taking/anti-shake photo taking/video recording/zoom in/zoom out/set/photo library/real-time time | |
| storage | 32G EMMC memory, image TIF, PNG storage; Video MP4 format | |
| Interface Settings | The charging interface | 12V input, available for system operation and charging, battery capacity: 6800 WH |
| Optical interface | EF/T | |
| 12 V/DC IN | Power adapter connector | |
| USB 3.0 | Connect the mouse to control the function of the host keys | |
| Type-C | Data line interface to transmit image data from the host | |
| 12/DC OUT | The connection line of the light source is connected at one end to provide power for the light source | |
| M42 interface | A threaded connection to the lens | |
| Other information | cooling way | Fan cooling |
| Total system power consumption | 7 W | |
| Size and weight | 222x121x67 mm，1080g |
Dimensions
